SET 1
SET 2
Clamp 180°
3D welding table standard holes
¥0.00
Size and packaging guidelines
Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.
Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.
Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
- 3D welding table is made of ST52.3 material with nitriding + Oxidation treatment and 0.2mm nitriding layer on the surface, which is effective in preventing corrosion, non-stick slag and resistant to bumping.
- with D28 system holes, grid 100 mm x 100 mm
- Three side rows of grid D28 system holes, 100 mm apart, thus significantly increasing the table extension and clamping area
- Available in various table sizes, surface hardness up to 600 Vickers.
- Optimized chamfering of the outer edge of the table, Rounded corners reduce the risk of injury
- Improved table stability by adding ribbed plates
- Grid lines with 100 mm spacing in X and Y directions
- Millimeter precision scales
- Table surface marked with X and Y coordinates
- New Weld Table logo on two sides of the table
- Round universal feet for precise height adjustment of the table
- The rib spacing is 400-500mm, providing strong support.
- Side holes arranged diagonally

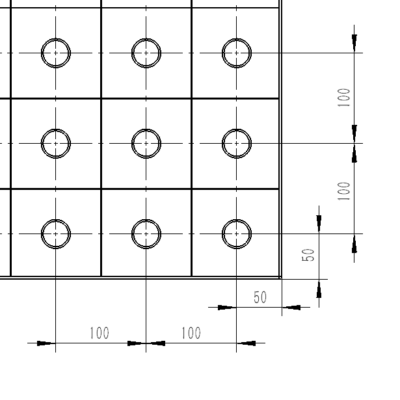

Top Hole

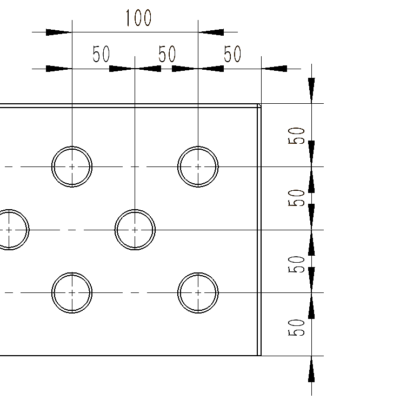

Side Hole
|
尺寸（毫米） |
重量（公斤） |
SKU |
桌腿 |
|---|---|---|---|
|
1000x1000x200 |
330 |
TA281010N |
4 |
|
1200x800x200 |
330 |
TA281208N |
4 |
|
1200x1200x200 |
450 |
TA281212N |
4 |
|
1500x1000x200 |
490 |
TA281510N |
4 |
|
1500x1500x200 |
690 |
TA281515N |
4 |
|
2000x1000x200 |
620 |
TA282010N |
4 |
|
2000x1200x200 |
750 |
TA282012N |
4 |
|
2000x2000x200 |
1180 |
TA282020N |
6 |
|
2400x1200x200 |
850 |
TA282412N |
6 |
|
3000x1500x200 |
1300 |
TA283015N |
6 |
|
4000x2000x200 |
2300 |
TA284020N |
8 |
| 重量 | N/A |
|---|---|
| 尺寸 | N/A |
| Size | 1000x1000x200, 1200x800x200, 1200x1200x200, 1500x1000x200, 1500x1500x200, 2000x1000x200, 2000x1200x200, 2000x2000x200, 2400x1200x200, 3000x1500x200, 4000x2000x200 |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
